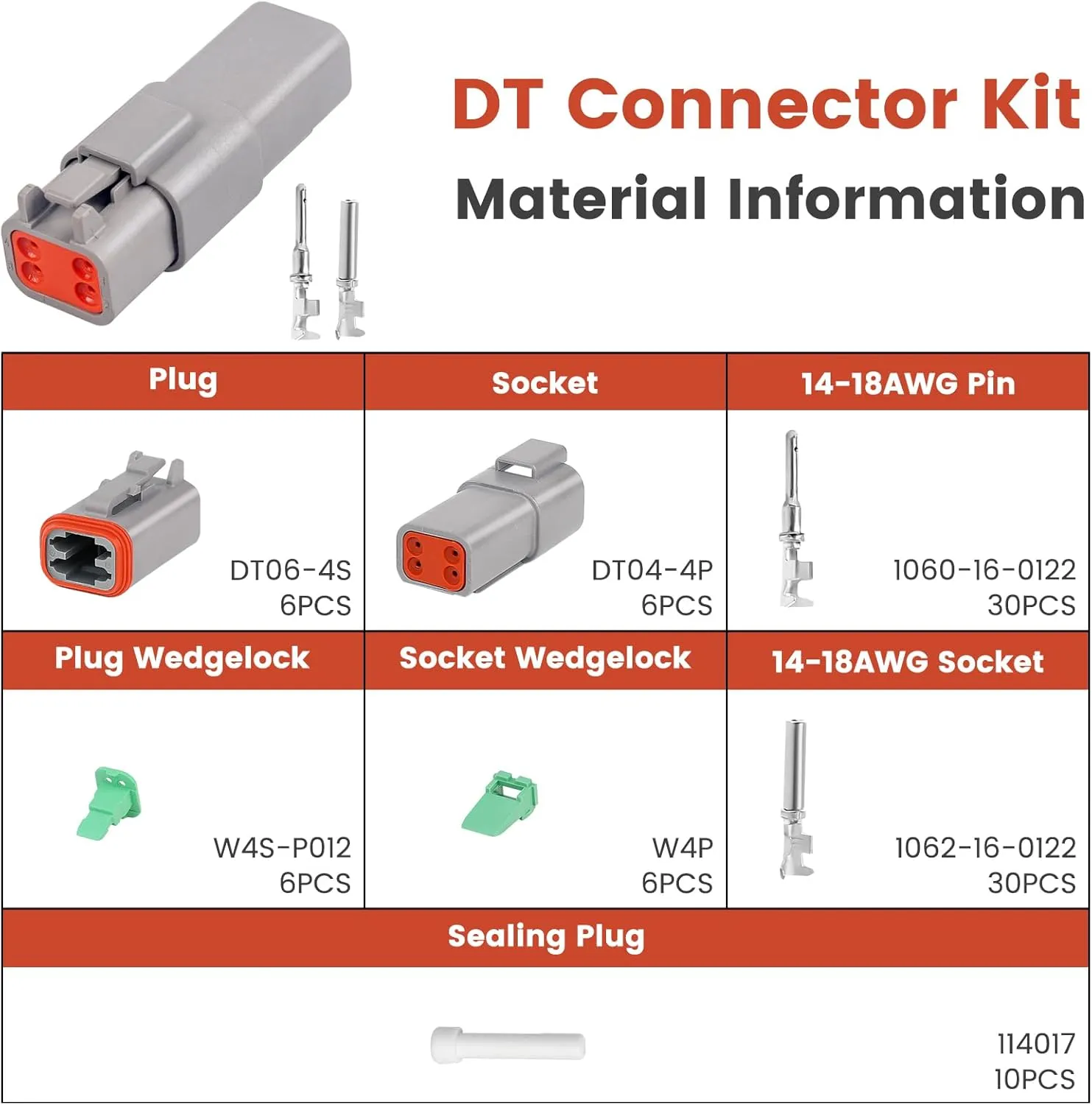

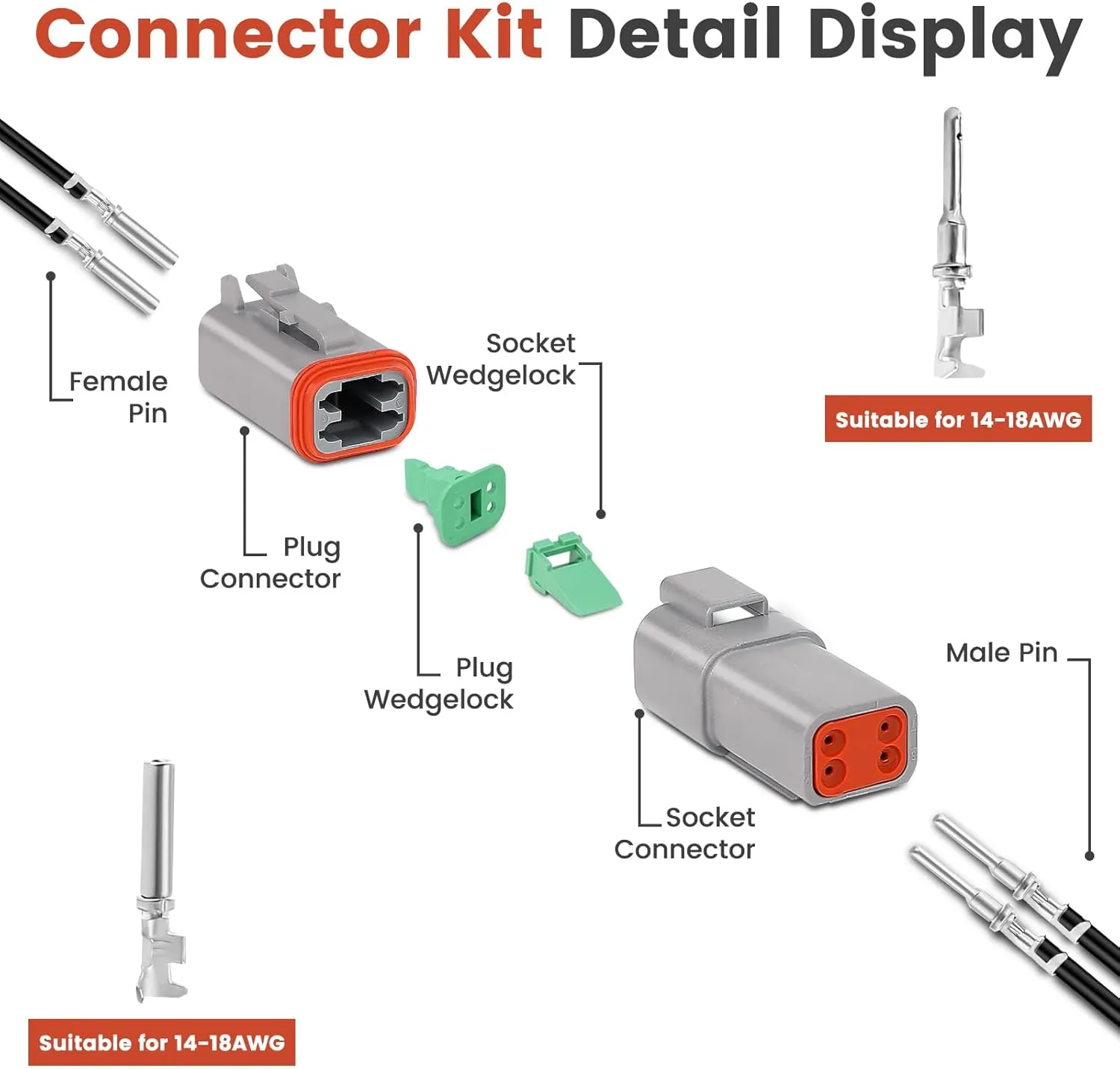

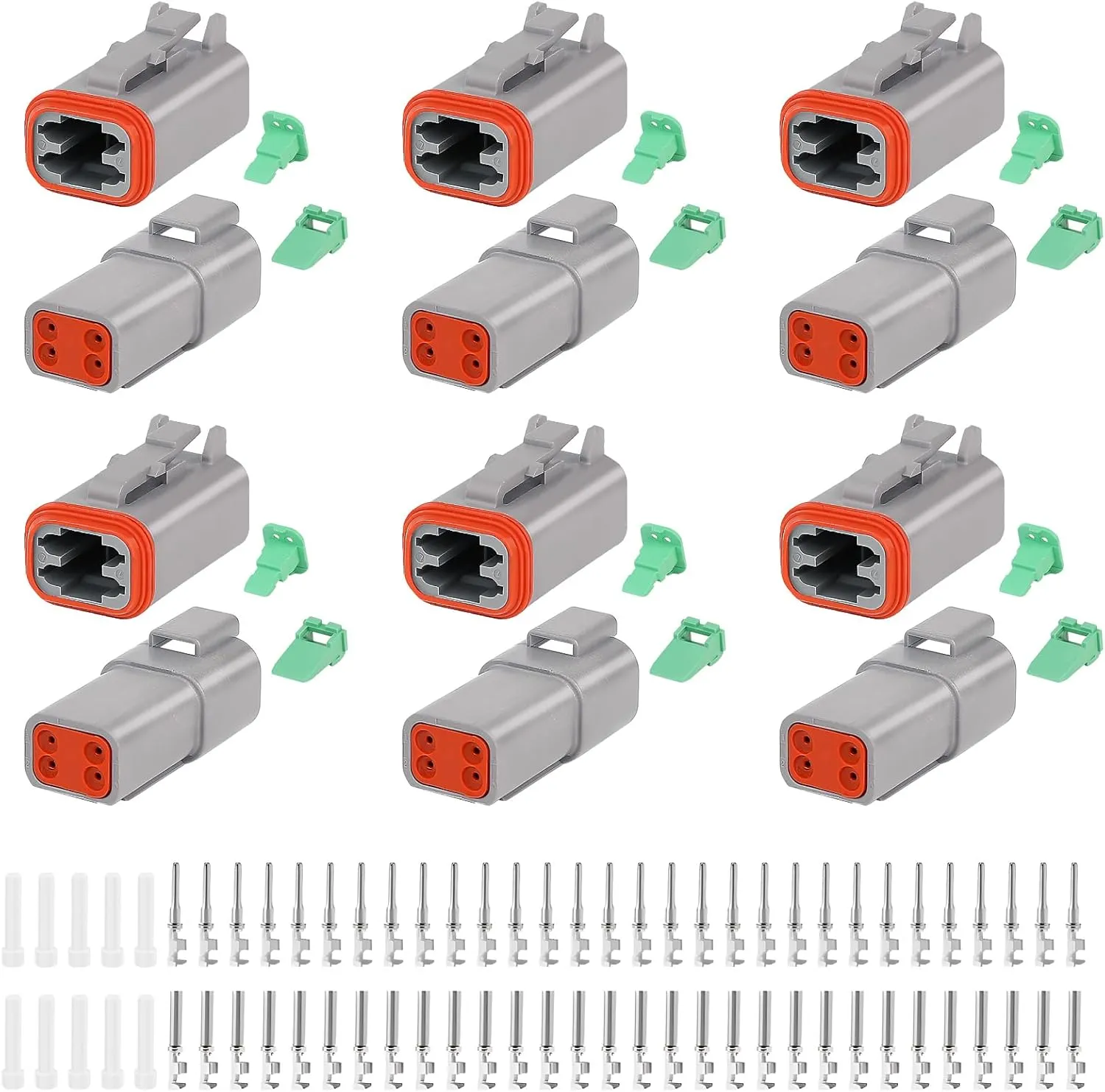

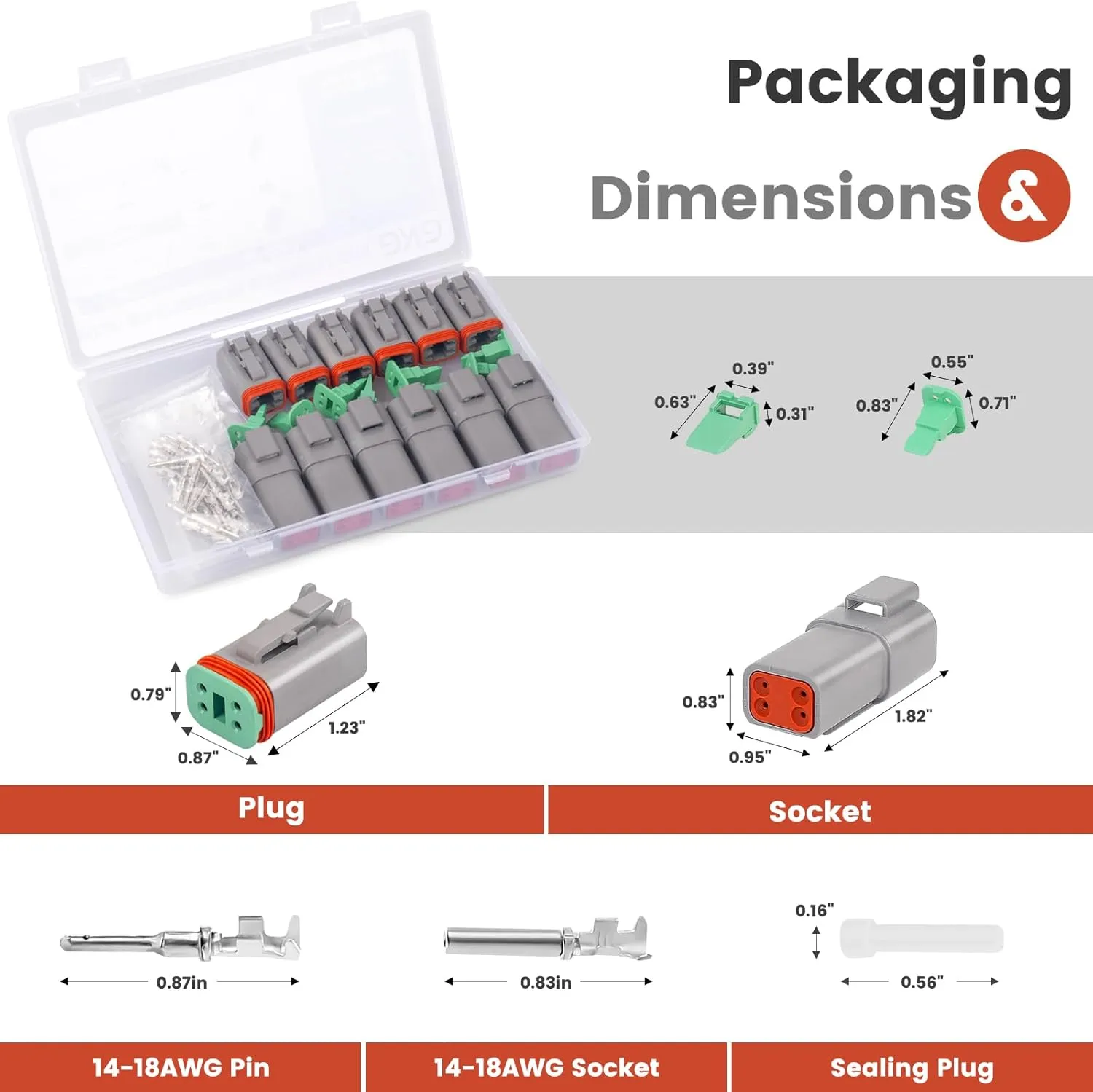

- Kit Contents:6 sets of 4 pin deutsch connector(plug model:DT06-4S,receptacle model:DT06-4P),30 pairs 14-18AWG stamped contacts,6 pairs wedge locks and 10pcs white sealing plugs(part number:114017),totaling 90 pieces

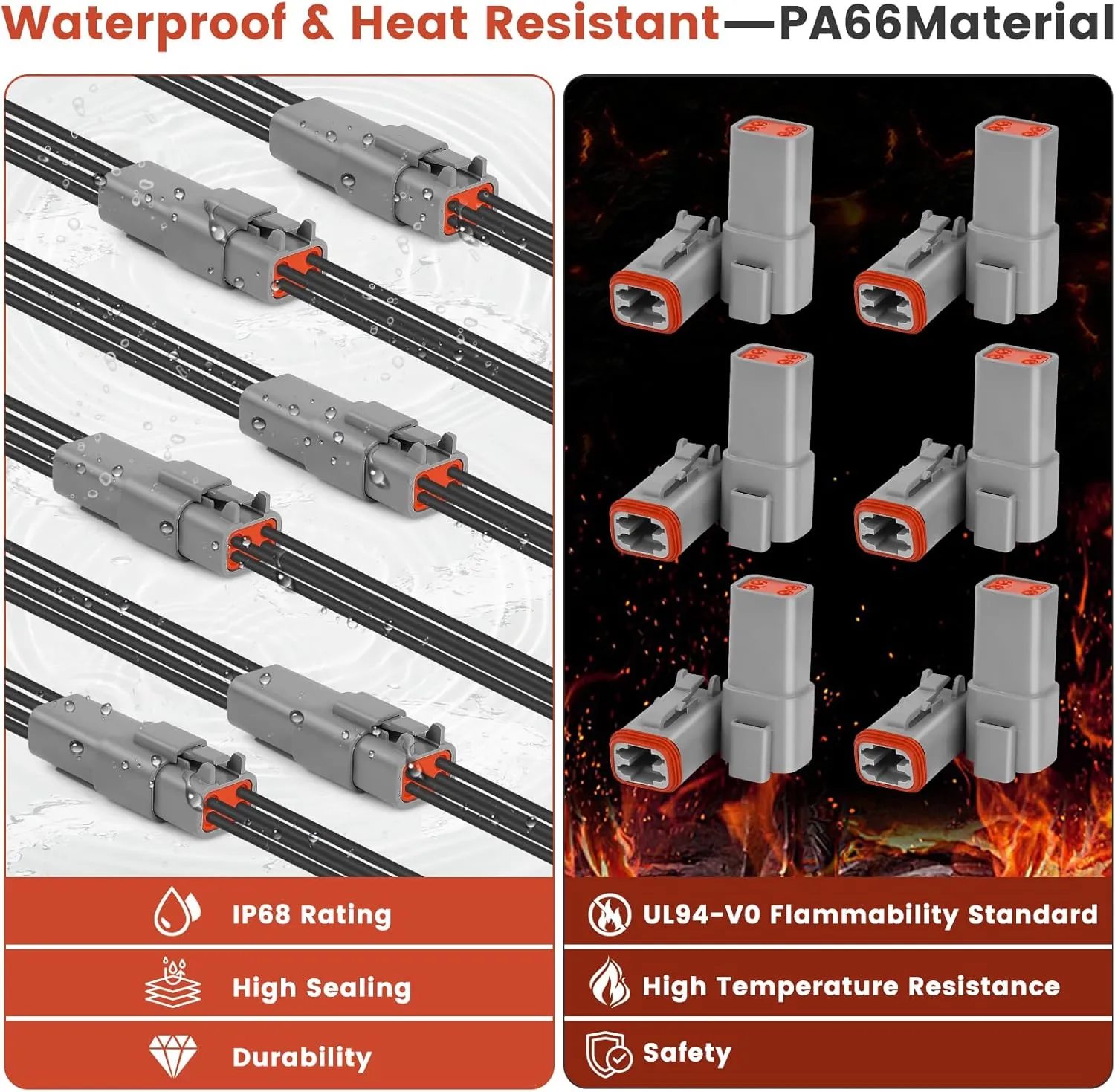

- 4 Pin Deutsch Connectors:The DT series connectors are made of flame-retardant PA66 nylon, meeting both IP68 waterproof and dustproof standards and the UL94-V0 flame retardancy standard. They are high-temperature resistant and highly vibration-resistant,capable of withstanding 20G sinusoidal vibrations (10-2000HZ) without unlocking or separating.They can endure up to 100 mating cycles without mechanical damage. temperature resistance range:-40°C to 125°C
- 14-18AWG Stamped Contacts:Nickel-plated stamped contacts achieve an insulation resistance of up to 1000 megaohms at 25°C.They are suitable for size 16# 14-18AWG wires,with a continuous current rating of up to 13 amps per contact

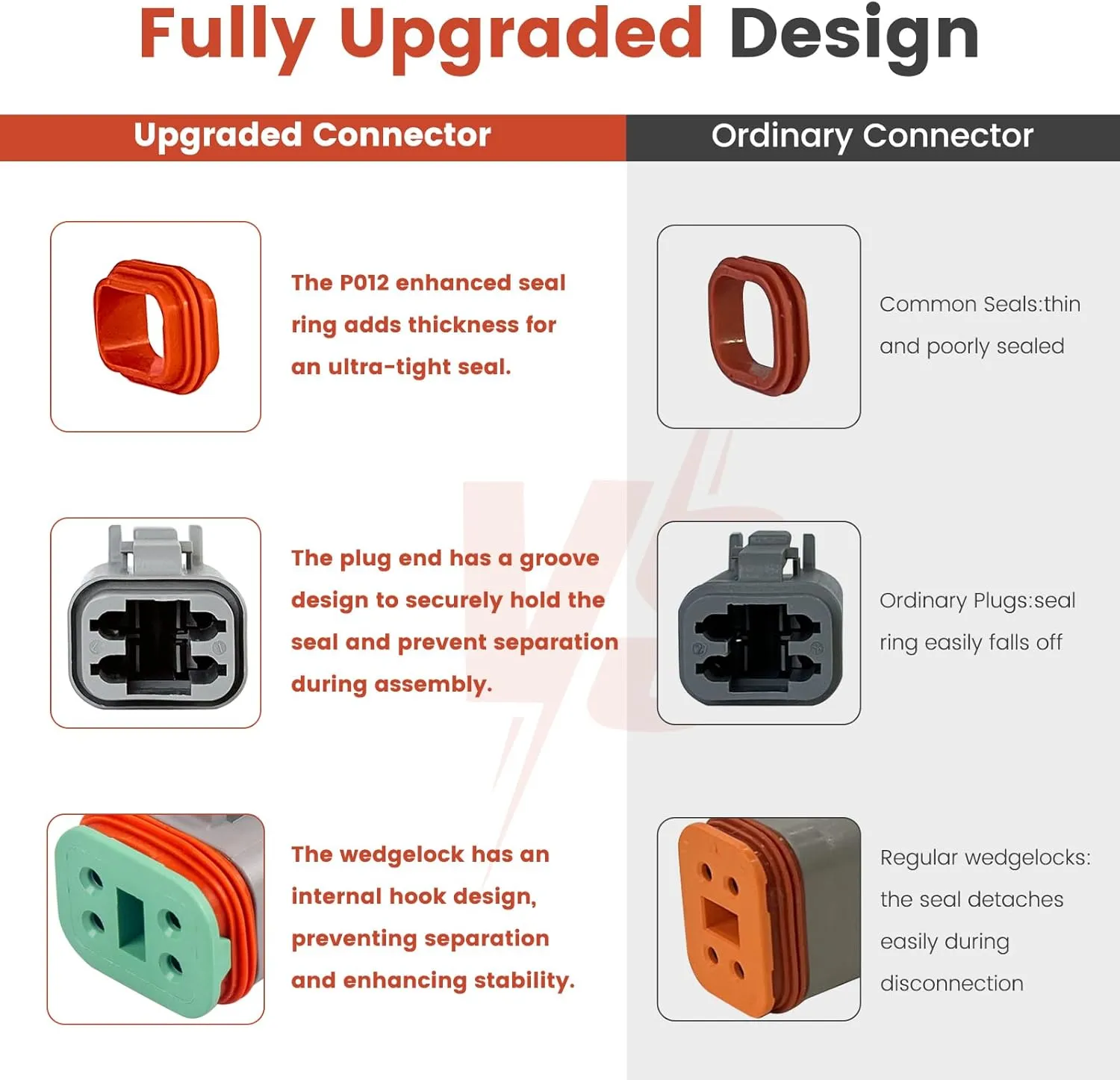

- 3 Upgraded Designs:Firstly,the 'P012' enhanced seal ring adds thickness for an ultra-tight seal.And then,The plug end has a groove design to securely hold the seal and prevent separation during assembly.Finally,The wedgelock has an internal hook design,preventing separation and enhancing stability
- Wide Applications:The GKG DT deutsch connector 4 pin kit is specifically designed to withstand various harsh environments, such as humidity,dust,high temperatures,and low temperatures.It is suitable for various applications,including engines,engine rooms,chassis and driver cabins
- Lifetime Support:Enjoy lifetime technical support and replacements.The GKG team is always available to assist you with any questions regarding deutsch connector kit 4 pin—whenever you need us
