- Dual ceramic ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
- 10 Blade G-Aero billet compressor wheel with extended tapered tip technology
- 9 Blade G-Aero Inconel 713c turbine wheel
- Anti-Surge ported-shroud compressor inlet, cover integrated with the speed sensor port
-Application:
Fit Vehicle: Universal turbo for performance use, racing car, etc.
Fit engine displacement 2.0-8.0L.
Making 525-1450 HP
-Item Details:

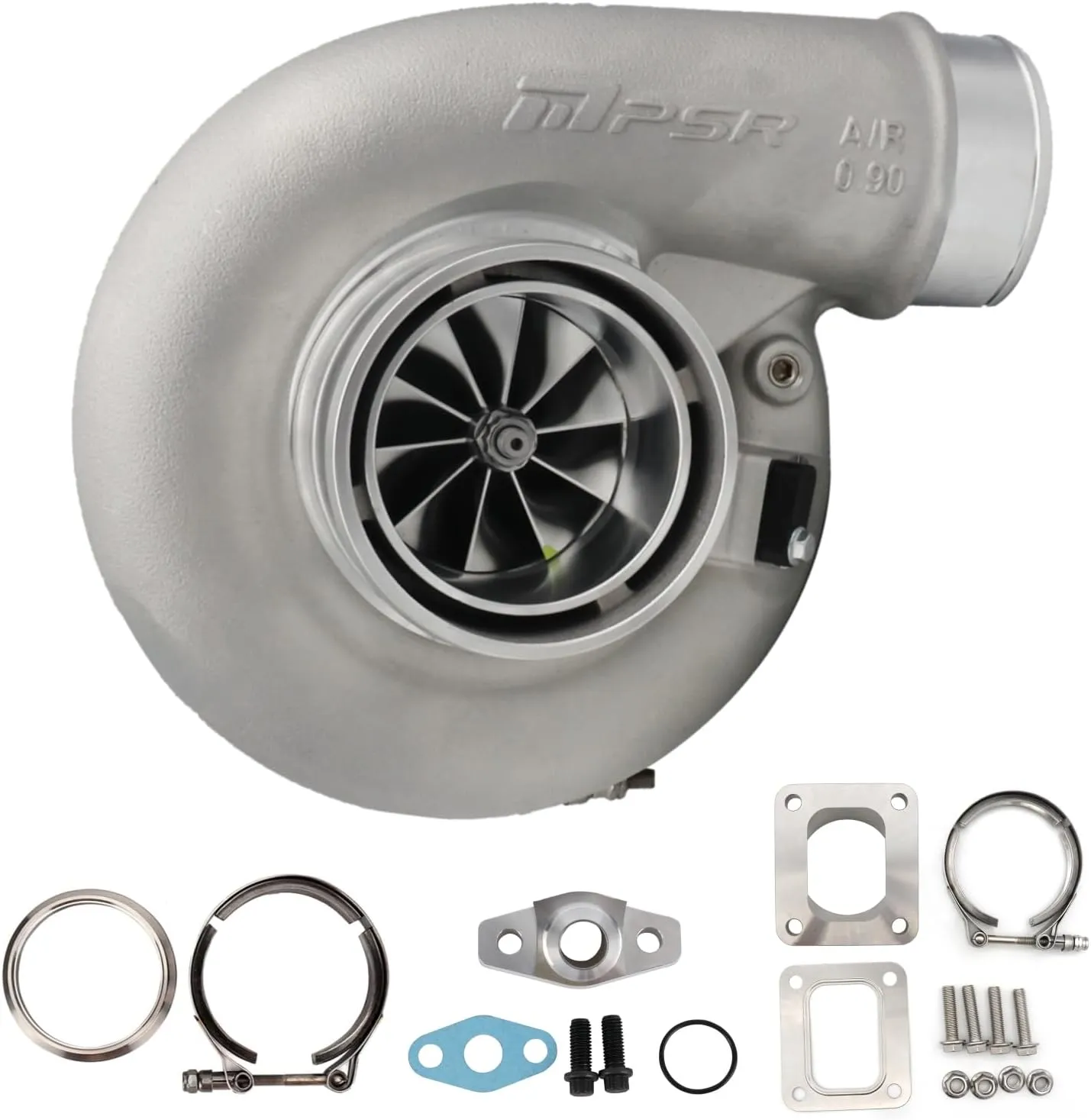

Standard Compact Compressor Housing: 4" Inlet Hose, 3" V-Band, 0.90A/R
Compressor Wheel: 79*98mm
Turbine Wheel: 82*75mm
Turbine housing: Dual Vband 1.01A/R An Adapter Vband to T4
Turbine Housing Inlet: 3″ V-Band
Turbine Housing Outlet: 3.5" V-Band
Water Ports: -6AN
Oil Feed: Flange Required(Recommended size: -4AN Std T4 Flange Non-Restricted)
Oil Drain: -12AN(O-Ring sealed Flange Kit Incl')
-Special Note:
1. Professional installation is highly recommended! Please ask all questions before purchasing!
2. Item(s) might be sent from our overseas warehouse via UPS, DHL, etc. at our discretion, you are responsible for the import duty (If Any) upon delivery.
